Z-Finder Pro 2.5X - DEMO
This is a DEMO open box item. It may have scratches, dents, small blemishes or other cosmetic defects but is still in complete working condition. This item still holds our lifetime repair warranty.

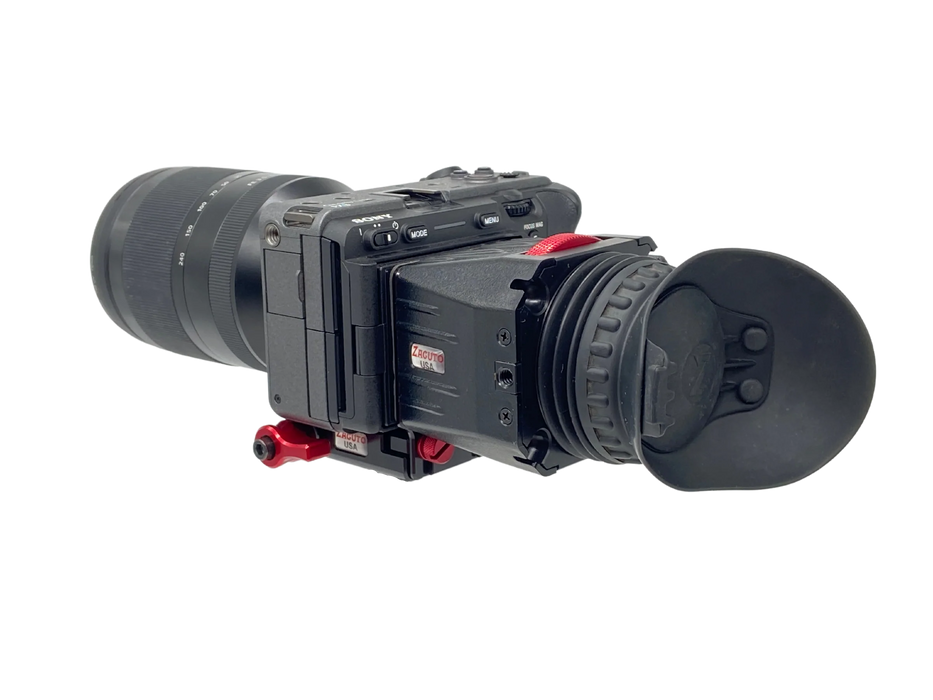

The Z-Finder Pro 2.5x is an optical viewfinder that allows DSLR cameras to have the correct form factor for video. This Z-finder will magnify the LCD screen by 2.5x and has a diopter for specific focus tuning. It cuts out any extraneous light and offers an initial point of stability by pressing your eye against our comfy, large eyecup. The Z-finder Pro 2.5x comes with a 40mm diameter Zacuto optical designed lens, anti-fog coated protective covers, and a mounting system designed for 3” LCD screens. (A 3.2” version is available.) The diopter allows you to dial in the focus to match your eye. If you need extra focal points you can use the included Z-Finder Extender Frames. These are semi-permanent stackable frames that attach to the body of the Z-Finder Pro and extend the Z-Finder glass further away from the LCD screen for people who are farsighted.
The 2.5x magnification is recommended in particular for users who are near sighted and may have problems seeing long distances. The Z-Finder Pro 2.5x has a diopter range of -4.75 and up (unlimited with extender frames). Users with 20/20 vision can use either magnification. It is a personal preference. This is the model we use with our electronic viewfinder packages. Your camera model is irrelevant when choosing between the 2.5x and 3x magnifications. If you are particularly far sighted (wear strong reading glasses) or are just looking for the biggest magnification possible we recommend the Z-Finder Pro 3x (please call Zacuto sales to order).

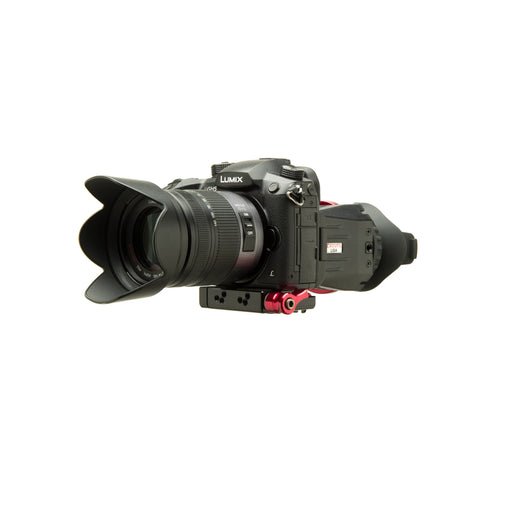

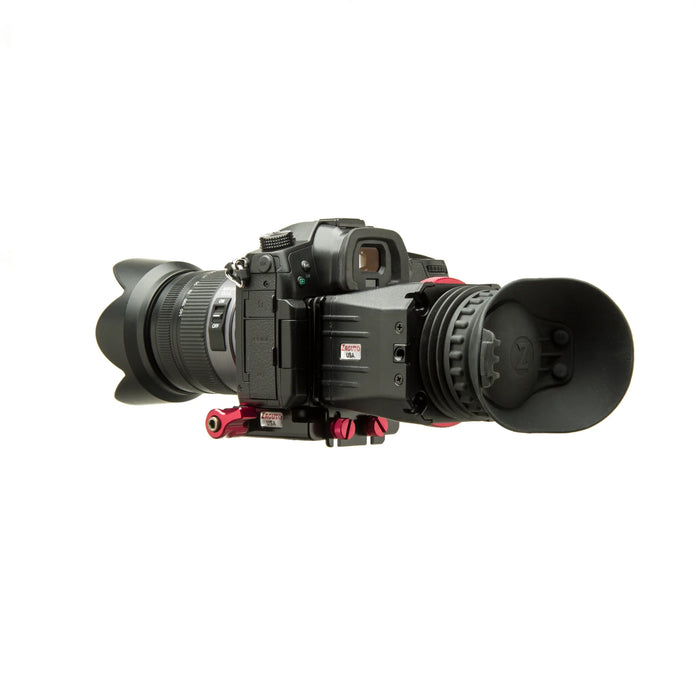

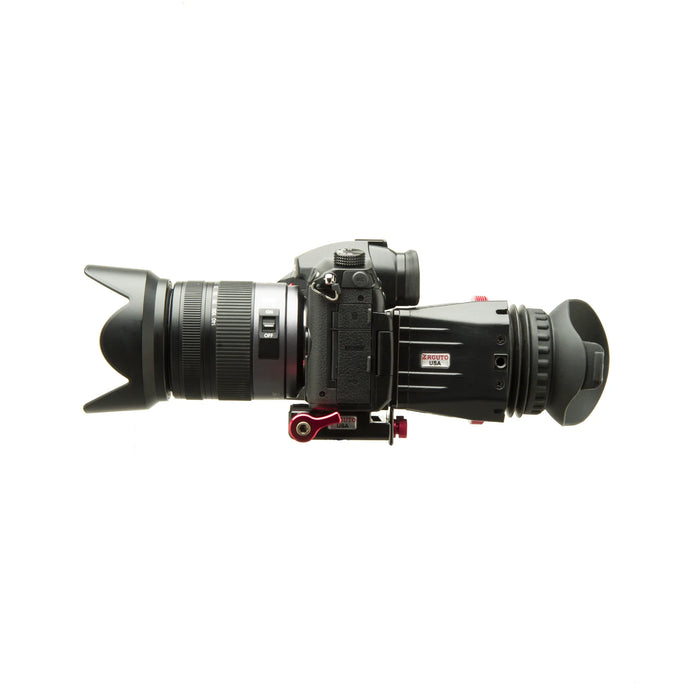

The Z-Finder Pro attaches to your camera with the included Gorilla Plate V2 and Z-Finder 3" Mounting Frame for Small DSLR Bodies. (The Z-Finder Mounting Frame can also be attached to our DSLR Baseplate.) The Gorilla Plate V2 attaches to the bottom of your camera using a ¼ 20” screw and has ¼ 20” screw holes underneath to attach a tripod plate. The metal Z-Finder Mounting Frame attaches to the Gorilla Plate using the provided red thumb screws. The Z-finder itself pops on and off the Z-finder Mounting frame. No magnets or glue are used. The metal Z-Finder Mounting Frame is backed with rubber to prevent scratching or slippage. If you want to remove the entire mounting frame from your camera, you can do so by loosening the thumb screws and pulling up on the metal mounting frame to release.
PLEASE NOTE
In order for the Gorilla Plate and mounting frame to correctly align with the LCD screen the plate needs to be directly underneath your camera. This means it cannot be used in combination with L brackets like Really Right Stuff or camera specific contour plates like Arca Swiss. You can use an adhesive frame on your camera with our Z-finder and continue using your camera specific plates as usual.
The Z-Finder Pro 2.5x includes:
Z-Finder Pro loupe with 2.5x magnification and diopter
Three (3) Extender Frames
Gorilla Plate V2 and 3” Mounting Frame for Small DSLR Bodies (
Lanyard and Lanyard Hook
Lens Cap, Sun Mask, and protective boot
Z-Finder Dust Cover
One installed and one additional Anti-Fog disc. This also acts as a lens protector and is expendable. More can be purchased here.
WARNING The Z-finder is a magnifier and as such will magnify the sun and could damage the LCD screen if the sun is allowed to shine directly through the Z-finder lens. This is not a defect but a physical property. Caution should be taken to avoid direct sun light. Proper use of the included lens cap and sun mask will dramatically reduce but not eliminate risk.
