Axis Mini for Sony FS7

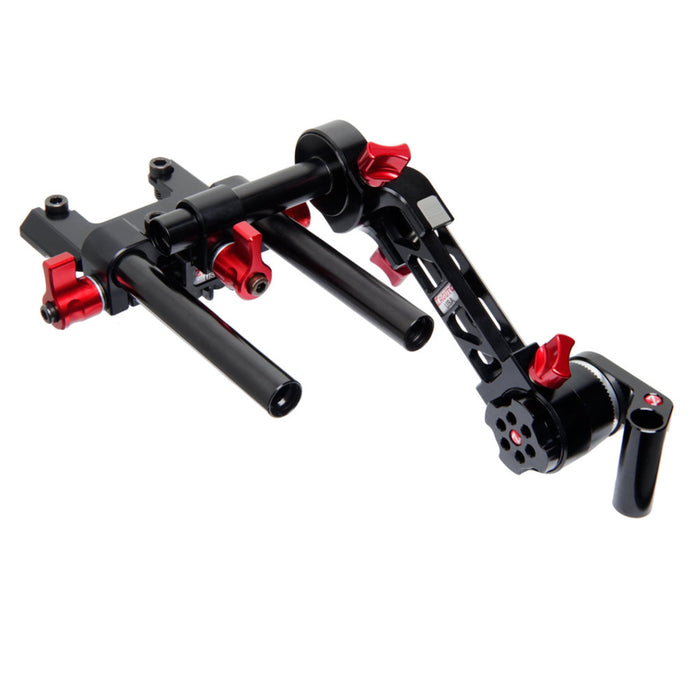

The Axis Mini for Sony FS7 and Sony FS7 II is the most adjustable ENG style mount for the Sony FS7 Monitor, giving you full 360º motion with four adjustment points. Designed to attach to the FS7 Rod Lock, it leaves plenty of room at the lens for focusing and will work with the widest of lenses. It can easily be adjusted with one hand while the rig is on your shoulder. The Axis Mini has extensive articulation for use in a variety of positions, both shoulder mounted in a Next Generation Recoil or in tripod operating position. It is very small and quick to install and remove.

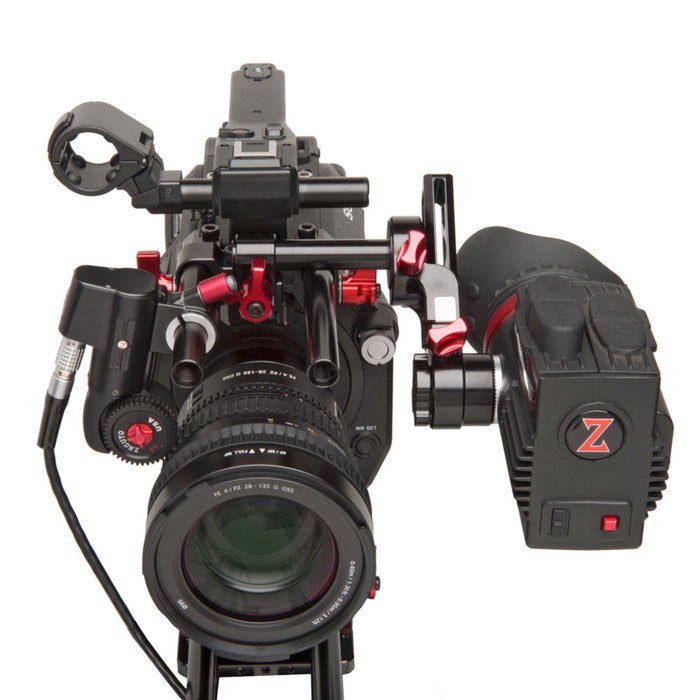

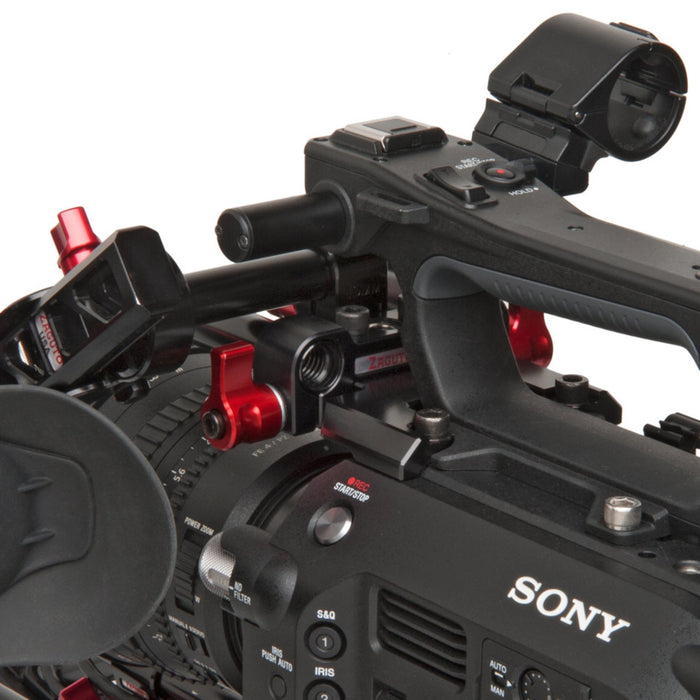

The Axis Mini for Sony FS7 and Sony FS7 II attaches to your rig via the included FS7 Rod Lock, which attaches to the FS7 body in front of the Sony top handle. Slide the Axis Mini into the extra 15mm rod port on the FS7 Rod Lock and clamp into place. The Axis Mini for FS7 attaches to the Sony monitor via a secure rosette mount adapter.

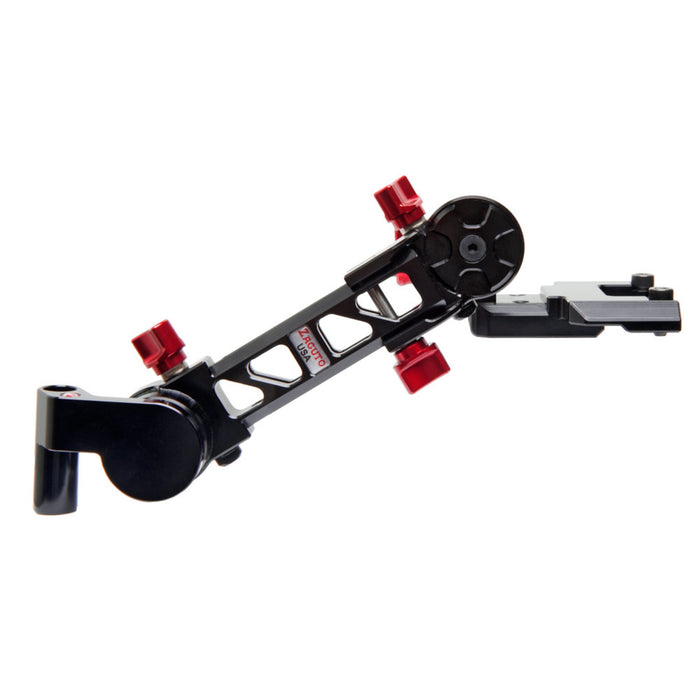

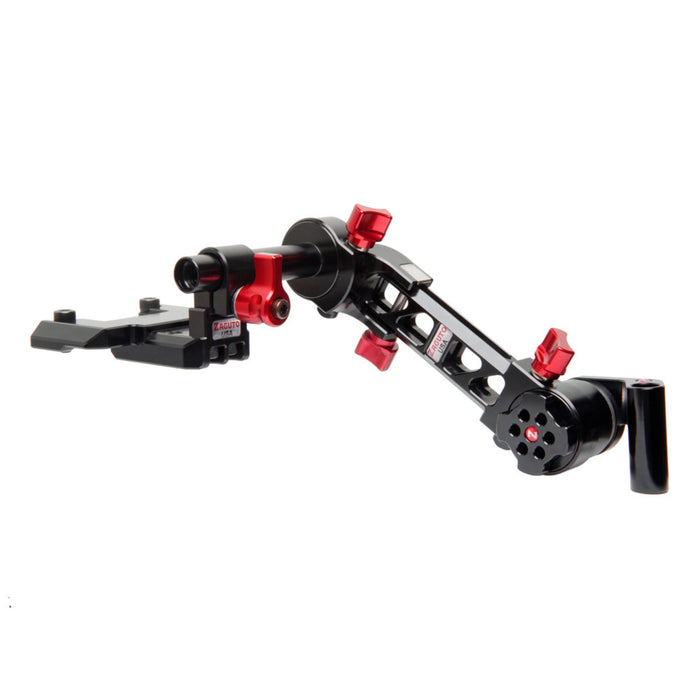

The Axis Mini has three red tension levers that are controlled independently with 360 degree motion. Release all three levers to completely reposition the mount or release just one to make single segment adjustments. You can dial in the exact amount of tension needed at each lever to adjust on the fly. Just grab and move.

Zacuto products are proudly made in the USA and non-electronic products have a lifetime warranty.
